Temperature Controller

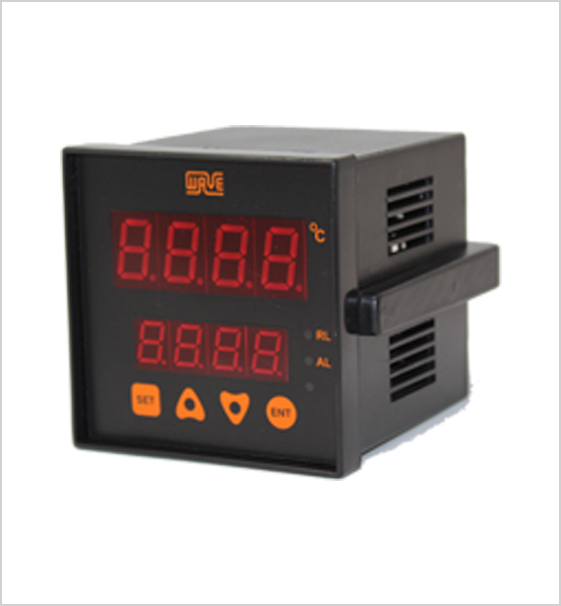

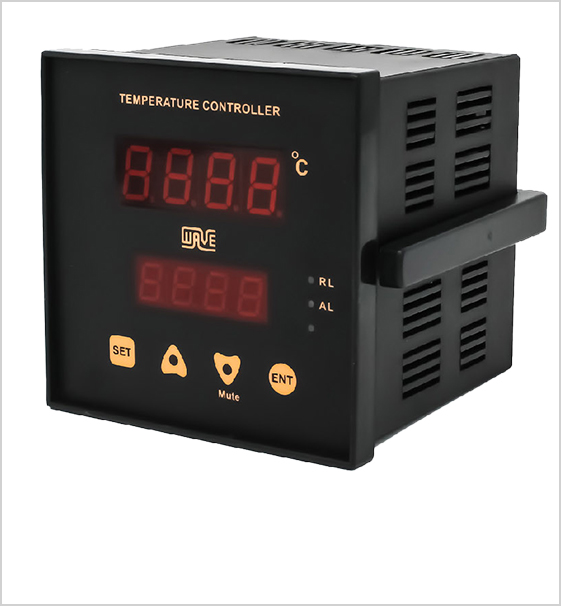

  • WTC-2201-HB….Size: 96(w)x96(h)x65(d) mm

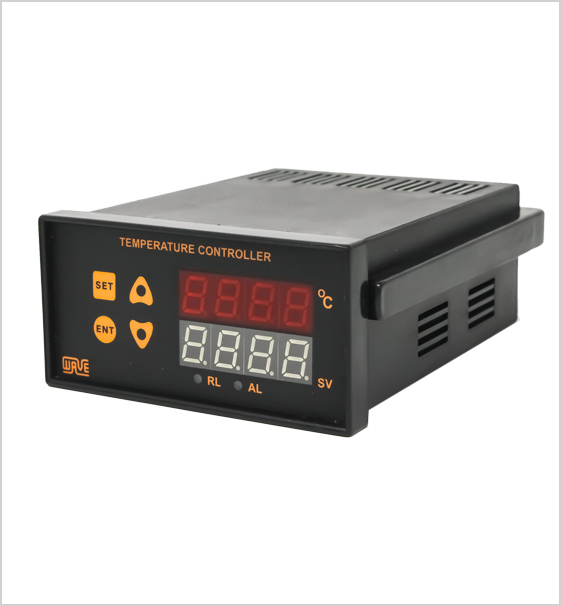

  • WTC-2001-HB….Size: 96(w)x48(h)x110(d) mm
  • WTC-2101-HB….Size: 72(w)x72(h)x65(d) mm

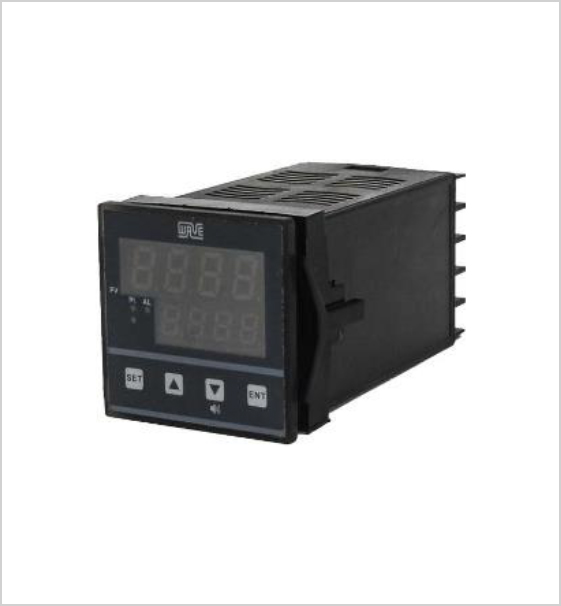

  • WTC-2301-HB….Size: 48(w)x48(h)x85(d) mm
  • CONTROLLER NAME Model No & TYPE WTC-2XXX-HB
    SIZE Dimention(HxWxD) mm 96x96, 48x96, 72x72, 48x48
    Panel Cutout (mm) 92x92, 68x68, 44x44
    DISPLAY Upper
    Lower
    7 segment, 4 digit RED LED display
    7 segment, 4 digit RED LED display
    INPUT Sensor & Range PT-100 2w/3w      -50 To 400°C
    J-Type         0 To 400°C
    K-Type         0 To 1200 °C
    OUTPUT Control Output
    Output Rating
    Relay or SSR for heater control, Relay or SSR contact for Blower control
    1C/O, 2A, 230V AC
    Set Point Set point for Temperature, Blower control hysteresis,
    Compressor delay if cooing control select
    Operating Mode PID/ON-OFF(for Heater)
    Resolution 1-digit resolution available for PT-100 sensor only
    Accuracy ±0.5 °C
    Power Requirement 100 - 260V AC, 50Hz
    Protection Relay turn off in case of sensor break or Fail
    Indication "OPEN" message display if sensor disconnected & alarm ON with led indication
    Memory Backup Selecteble according to requirement
