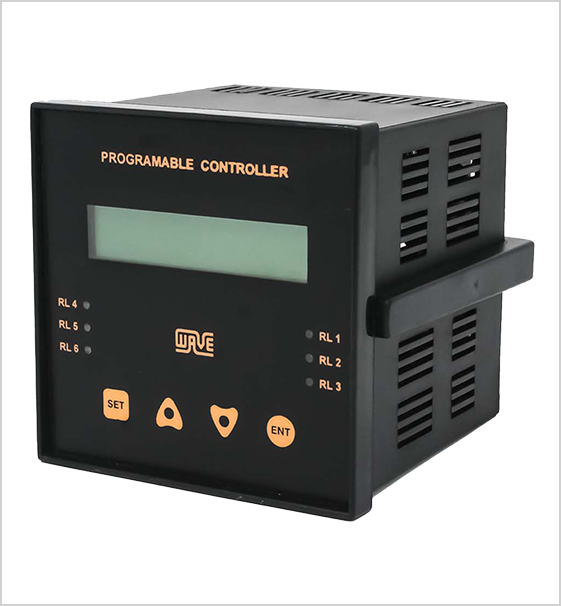

| CONTROLLER NAME | Model No & TYPE | WTC-1602-PR-OF-16 |
|---|---|---|
| SIZE | Dimention(HxWxD) mm | 96x96 |
| Panel Cutout (mm) | 92x92 | |
| DISPLAY | LCD | 16x2 LCD display |
| INPUT | Sensor & Range | PT-100 2w/3w -50 To 400°C J-Type 0 To 400°C K-Type 0 To 1200°C |
| OUTPUT | Control Output Output Rating |
Relay or SSR or Current : 0/4 to 20mA DC (max load 500E) or Voltage : 0 to 5/10V DC(min load 10K) Alarm contact for buzzer 1C/O, 2A, 230V AC 24V DC for Buzzer |
| Set Point | Set point for Heater Relay hesterisis Ramp selection, Alarm Relay and Timer Relay |
| Ramp selection | Time and Temperature base selection Time base ramp : Time setting 0 to 1000 minute Temperarture base ramp : Temperature / Minute setting 0 to 100(0 = natural rise) |
| Operating Mode | ON-OFF |
| Resolution | 1-digit resolution available for PT-100 sensor only |
| Accuracy | ±0.5°C |
| Power Requirement | 100-260V AC, 50Hz |
| Protection | Relay turn off in case of sensor break or Fail |
| Indication | "OPEN" message display if sensoor disconnected & alaram on with led indication |
| Memory Backup | Selectable according to requirement |
