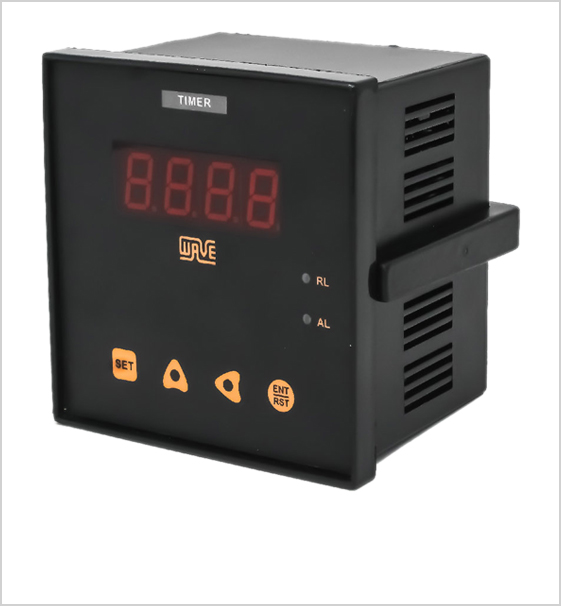

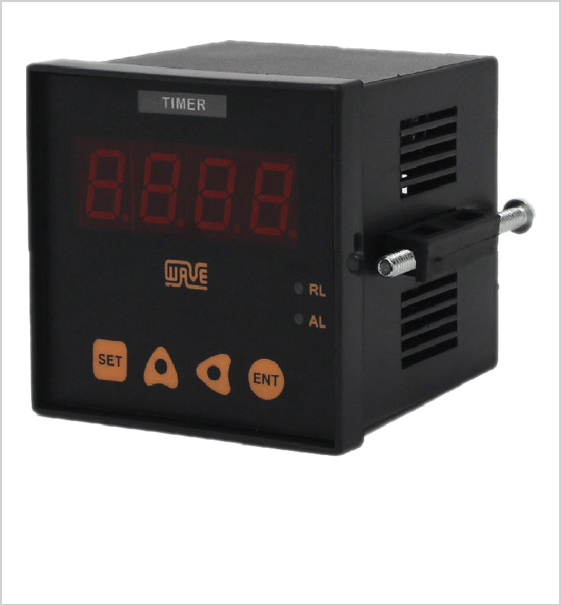

| CONTROLLER NAME | Model No & TYPE | WTM-1XXX-PH |
|---|---|---|
| SIZE | Dimention(HxWxD) mm | 96x96, 72x72, 48X48, 48x96 |
| Panel Cutout (mm) | 92x92, 68x68, 44x44, 44x92 | |
| DISPLAY | Upper | 7 segment, 4 digit RED LED display(Process Time) |
| OUTPUT | Control Output Output Rating |
Relay Output, Alarm output
1C/O, 2A, 230V AC |
| Resolution | Decimal point, slection |
| Power on time | Delay ON / Delay OFF |
| Reset Facility | Front & Back Both reset available (optional) |
| Time Setting Range | 1 to 9999(min or second selectabel) |
| Counting Direction | Up / Down (Configurable) |
| Memory Backup | Selecteble according to requirement |
| Indication | LED for relay status indication |
| Power Supply | 220V DC |
